Components for servo stabilizer
Gear for Servo Stabilizer
- Product info : Gear for variac & veriac from 4 amp. To 200 amp. of having shaft of 3/8 inch, 5/8 inch & 38.25 mm diameter.
- Made of : Polyacetal resin commonly known as ‘Delerin' ( a thermo – plastic )
- Application : Currently used in most of Servo Stabilizer manufacture.
- Other Peech :
- Available in 3/8” diameter to inner diameter of 30, 36, 40, 64, 72, 80, 96, 108 teeth Gear.
- Available in 5/8” inner diameter for 36, 48, 60, 64, 72, 80, 96, 108, 120 & 150 teeth Gear.
- Available in 38.25 inner diameter in 120, 150 & 180 teeth.
We can also provide Gears in Aluminium, as per party’s requirement on order basis.
| No. of Teeth |
DP |
A1 mm |
A2 mm |
C1 mm |
C2 mm |
D F Hole |
E |
| 20 |
20 |
27.9 |
19 |
13.0 |
12.5 |
3/8 inch |
M4 |
| 24 |
20 |
33.0 |
19 |
13.0 |
12.5 |
3/8 inch |
M4 |
| 30 |
20 |
40.6 |
19 |
13.0 |
12.5 |
3/8 inch |
M4 |
| 36 |
20 |
48.2 |
19 |
13 |
12.5 |
3/8 inch |
M4 |
| 36 |
20 |
48.2 |
28 |
13 |
12.5 |
5/8 inch |
M5 |
| 40 |
20 |
53.3 |
19 |
12.5 |
12.5 |
3/8 inch |
M4 |
| 48 |
20 |
63.5 |
19 |
12.5 |
12.5 |
3/8 inch |
M4 |
| 48 |
20 |
63.5 |
28 |
8 |
12.5 |
5/8 inch |
M5 |
| 60 |
20 |
78.5 |
28 |
12.5 |
13.5 |
3/8, 5/8 inch |
M5 |
| 64 |
20 |
83.8 |
28 |
12.5 |
12.5 |
5/8, 3/8 inch |
M5 |
| 72 |
20 |
93.4 |
28 |
14 |
12.5 |
3/8, 5/8 inch |
M5 |
| 80 |
20 |
104.1 |
28 |
12.5 |
12.5 |
5/8, 3/8 inch |
M5 |
| 96 |
20 |
124.6 |
28 |
12.5 |
12.5 |
5/8, 3/8 inch |
M5 |
| 108 |
20 |
139.7 |
28 |
12.5 |
12.5 |
5/8, 3/8 inch |
M5 |
| 120 |
20 |
156.2 |
28 |
11.4 |
13 |
5/8 inch |
M5 |
| 120 |
20 |
156.2 |
53 |
11.5 |
20 |
38.25 mm |
M6 |
| 150 |
20 |
194.5 |
28 |
15.4 |
12.5 |
5/8 inch |
M5 |
| 150 |
20 |
194.5 |
53 |
15.4 |
20 |
38.25mm |
M6 |
| 180 |
20 |
231.2 |
53 |
15 |
20 |
38.25mm |
M6 |
| 180 Aluminium |
20 |
231.2 |
53 |
15 |
20 |
38.25mm |
M6 |
Gear with limit switch operating stick
- Product info : Gear available with limit switch operating stick are in 36 teeth with 3/8, 48 teeth with 3/8” inch ID & 5/8“ inch ID with Al. Bush.
- Made of : Polyacetal resin commonly known as ‘Delerin'(a thermo – plastic)
- Application : Currently used in most of Servo Stabilizer manufacture.
- Other Peech :
- For Gear 72 teeth & 120 teeth provision Is made for Limit Switch.
- Operating Stick (Apply 5mm screw as per your requirement along with nut).

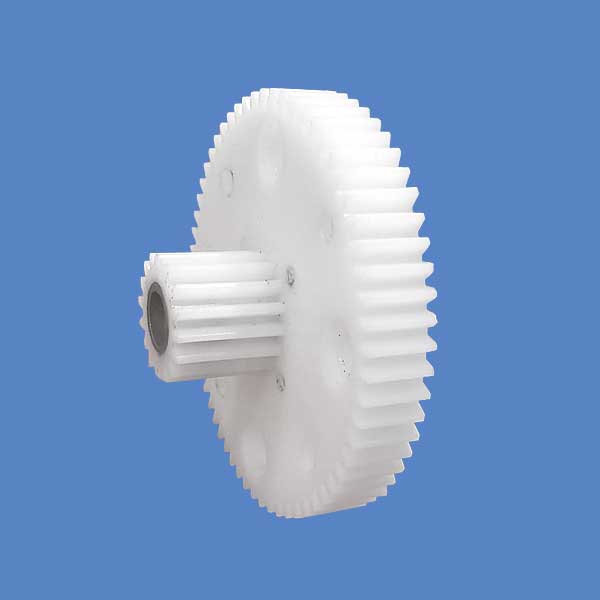

- Product info : Gear used in servo stabilizer for speed charge from motor to drive.
- Made of : thermo plastic
- Application : Currently used for reduction in speed of variac
- Specification :
- Available in 40/20, 48/16 in 3/8”, 10mm ID, 48/12 in 1/4 inch ID 60/16 & 16/30 teeth gear with Sinted Bush.
| No. of Teeth |
DP |
A1 mm |
A2 mm |
C1 mm |
C2 mm |
D F Hole |
| 30/16 |
20 |
40.0 |
22.0 |
12.5 |
21.0 |
3/8" Sinted Bush |
| 60/16 |
20 |
78.0 |
22.0 |
12.5 |
21.0 |
3/8" Sinted Bush |
| 48/12 |
20 |
63.5 |
17.8 |
12.5 |
18.0 |
1/4" M.S. Bush |
| 48/16 |
20 |
63.5 |
22.0 |
12.5 |
18.0 |
No Bush |
| 40/20 |
20 |
53.3 |
27.9 |
12.5 |
18.0 |
No Bush |
We also make all kind of Compound Gear in Aluminium as per order.
Gear for Synchronous Motor
- Gear of 12 teeth, 16 teeth, 20 teeth, 24 teeth Product info : for synchronous motor (3 kg cm to 20 kg cm torque) for servo stabilizer.
- Made of : Polyacetal resin (thermo – plastic)
- Application : Commonly used by most of synchronous motor manufacture. 3 kg cm, 10 kg cm, 20 kg cm motor
- Other Peech :
- Available is 3/8 inch ‘D' slot. 8mm ‘D' slot, 9mm ‘D' slot, 10mm ‘D' slot.
- In 24 teeth we have Aluminium bush with 3/8 inch hole diameter.
| No. of Teeth |
DP |
A1 mm |
C1 mm |
E |
| 12 |
20 |
17.8 |
18.5 |
3/8" or 8mm, 9mm, 10mm |
| 16 |
20 |
22.8 |
13.0 |
3/8" or 10mm |
| 20 |
20 |
27.8 |
18.0 |
3/8" or 10mm |
| 24 |
20 |
33.8 |
12.5 |
3/8" |
We have Gear 12 teeth 3/8 ID round hole in Aluminium.
