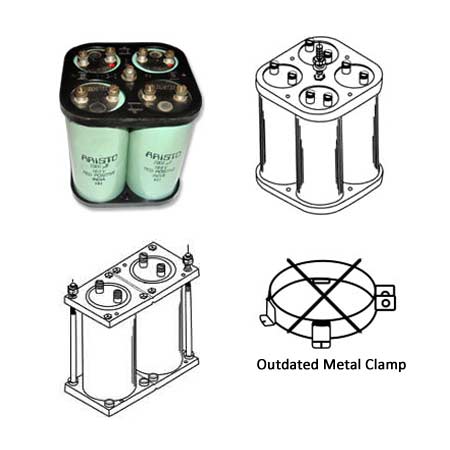

Mounting of capacitor by metallic clamp is untidy, space & time consuming process. Four capacitors can be mounted at a time with single stud using a pair of capacitor Mounting Clock. It provides ease of fixing, saves lot of time, space & extensive wiring. The bottom clamp acts as holder as well as insulator between capacitor & base plate thereby taking care of leakage.

The faulty capacitor can be replaced very easily by just unscrewing centre stud.

Capacitor Bank can be tested before putting it on assembly line. Made out of Reinforced Thermoplastic. The mounting block is tough & have excellent electrical insulation value.

Series CC (4x1) Available for 25, 30, 35, 40, 45, 50 & 65 mm Dia capacitor can. Also available in Series CC (2x1) for 25, 30, 35, 40, 45, 50, 65 & 75 mm Dia Capacitor can

Instrument legs are used in Professional Electronic instruments where Sturdiness is more important than mere support to the cabinet.

• Made of : Pure polyamide Thermoplastic
• Application : Used in Professional electronic instrument.
• Other Specification : Available in height of 13mm, 19mm, 28mm & 30mm.

The conventional leg made out of PVC or HDP have short life. They either crack or wear out very easily. There by the levelling of instrument gets distrub causing malfunction.
Western India Electronics offers instrument legs manufactured from engineering Thermoplastic. Speciality of these legs are that they are tough, hard & unbreakable. (Beside its super white finish gives profesional look).

Transistor Cap For To - 30

• Made out of Reinforced Thermoplastic. Can Stand 100⁰C. They are press fit. A small hole is provided at the top for laster cooling of transistor.

Transistor Stand Off For To - 220

• Made out of Reinforced Thermoplastic. Saves transistors connecting leads from damage during soldering operation can stand temp 100⁰C.

Transistor Insulating Pads

• Western India Electronics offers insulating transistor pads for Transistor To-30. Its one piece design not only simplifies mounting of power transistor but also provides proper insulations. Made out of Reinforced Thermoplastic can stand temp at 100⁰C.

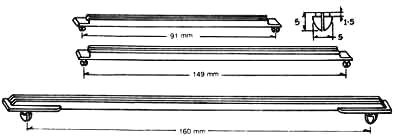

Western India Electronics has developed one piece sanp-in-fit card guide designed for easy & positive assembly of PCB. The card guide have snap-in-mounting facility & is mounted by pushing in to pre-drilled holes withoput need of fasteners.

Card gide with 3mm bress insert for fixing on chassis.

Used for isolating of Live Bolt.

• Made of : Pure Polyamide Thermoplastic.
• Specification : Male & Female of 4 mm,6mm & 8mm.

Made out of polymide. Have very good insulation value (3KV for 5 minutes) can be used to insulate live point. As output termination bush. As fuse mounting bush and as bus bar mounting bush.
Bakelite plate can be replaced by M.S. plate by using insulating bushes. Available in 3 sizes 8 mm hole. 6 mm hole. 4 mm hole.

To mount the PCB in the Instrument

• Made of : Glass Filled Ployamide.
• Specification : Available in 12.5 mm, 20 mm & 30 mm Height.
